‘the urban esplanade’

John D. O’Bryant School Intervention

Malcolm X. Blvd, Boston, MA

Partners: Sofie Katona & Hannah Laak

Bridging the gap between Nubian Square and Mission Hill, with a community engaging public boardwalk.

The Urban Esplanade aims to address the current site circulation and its connection to the urban context as well as the community engagement problems of the O’Bryant Campus. The design will provide public social spaces and increase greenspace on the site, while also implementing a safe public walkway between the O’Bryant Campus buildings and the neighboring communities. The campus adaptations are achieved by reclaiming interior spaces--implementing multipurpose programs and much needed student space within a new design language. The exterior spaces are transformed through the insertion of a boardwalk path. The path is complemented by wood landscape elements and a series of occupiable pavilions. These design elements as a whole allow for an inviting atmosphere and community connection at an intimate and urban scale.

Urban Connection

Urban Axon proposed path-01.png
Urban axon tremont and nubian-01.png

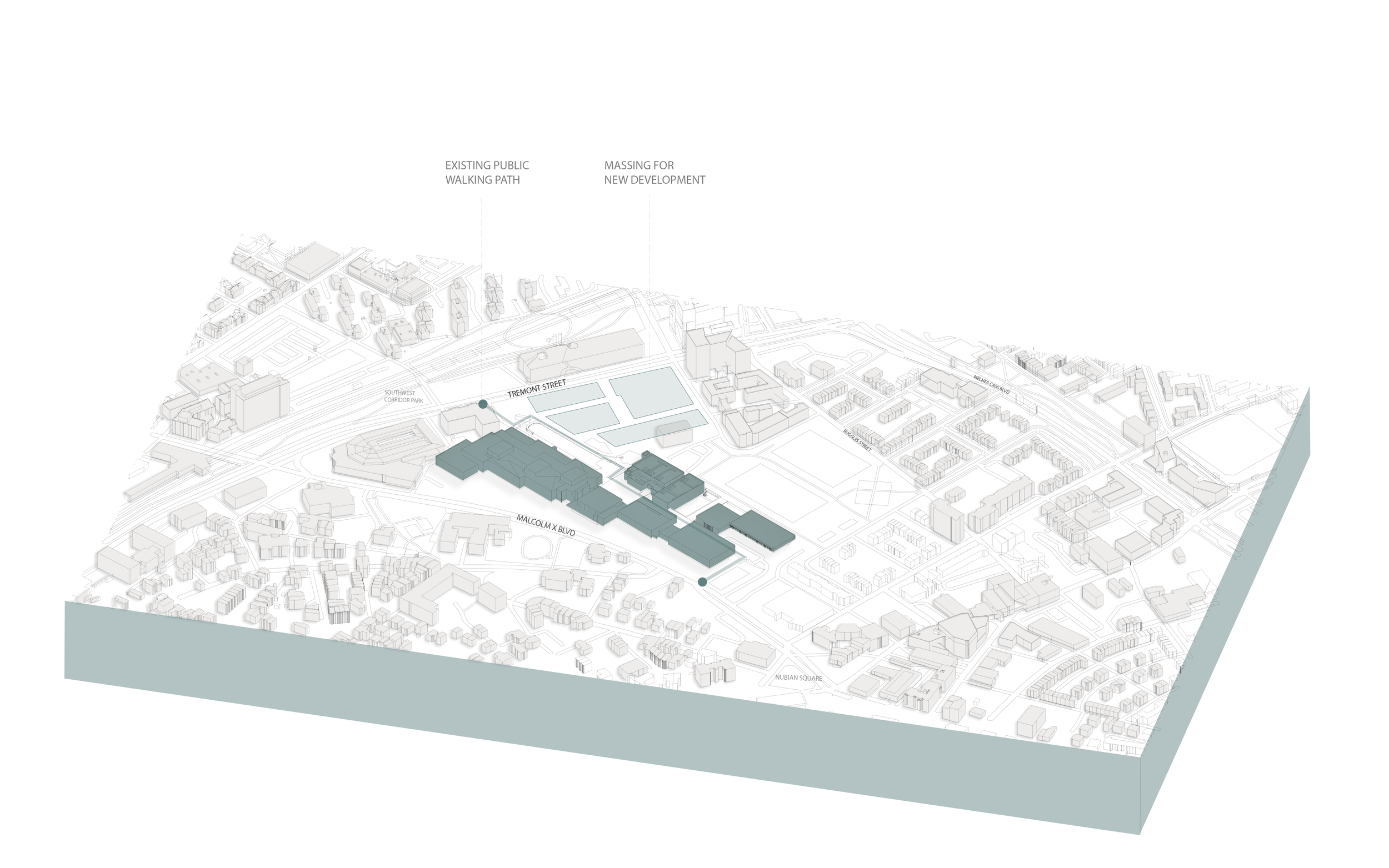

Urban Axon existing and new dev-01.png

existing areas for intervention

Urban Axis Existing Images-01.png

Site Plan

Features public boardwalk/greenway that spans approximately half a mile; connecting the Mission Hill neighborhood to Roxbury.

Site Plan facing north compressed-01.png

demo & intervention Floor plans

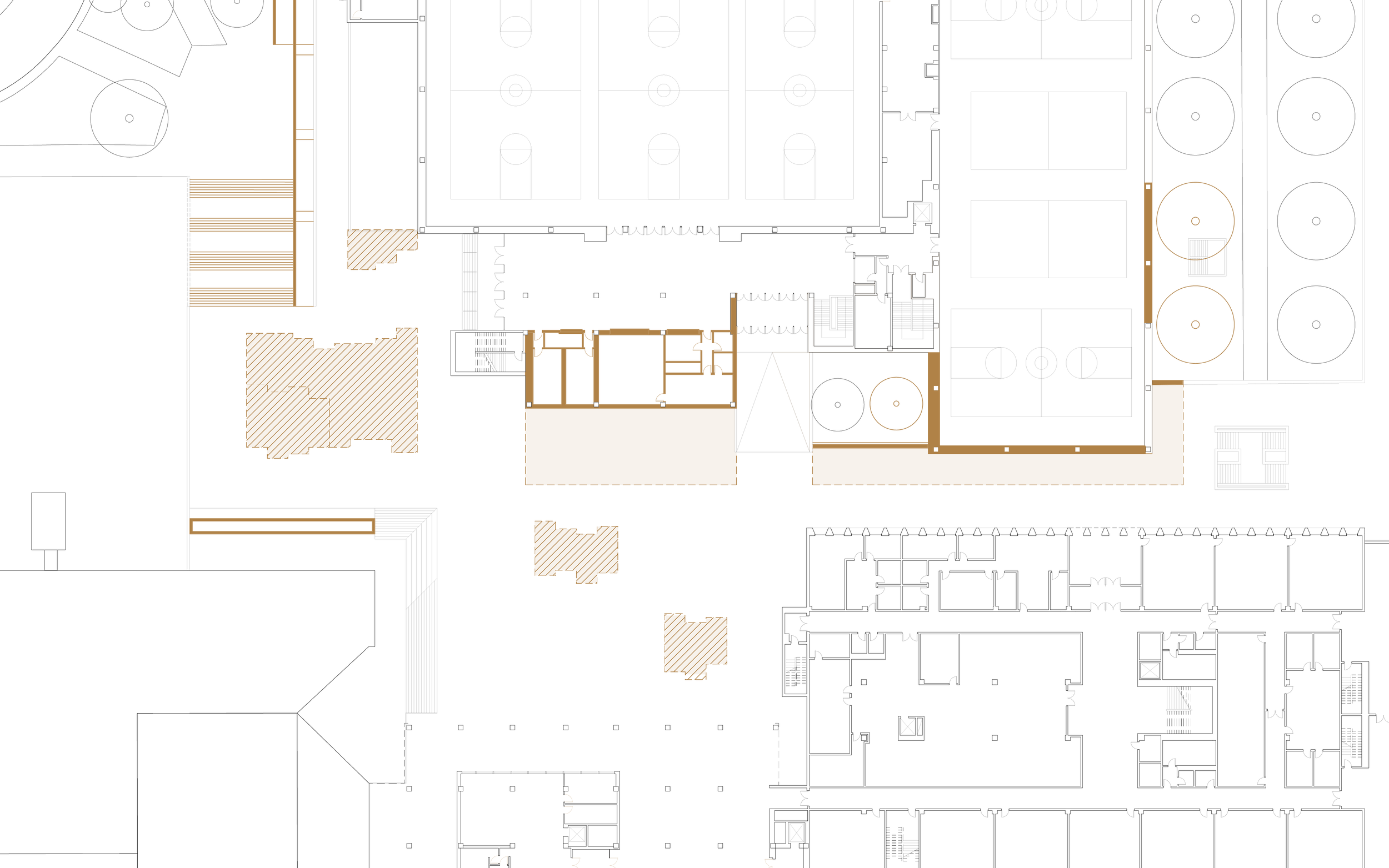

Street Level Demo Plan-01.png

street level demo plan

Street Level Plan Final-01.png

street level intervention plan

Basement Level Demo Plan-01.png

basement level demo plan

Basement Level Plan-01.png

basement level intervention plan

project key moments

Key Moment 01-01.png
Key Moment 02-01.png
Key Moment 03-01.png
Final Section Perspective Rendered-01.png
Long Section Edited With Site Detail 2-01.jpg
